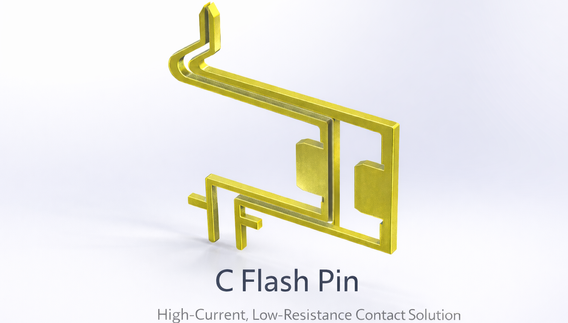

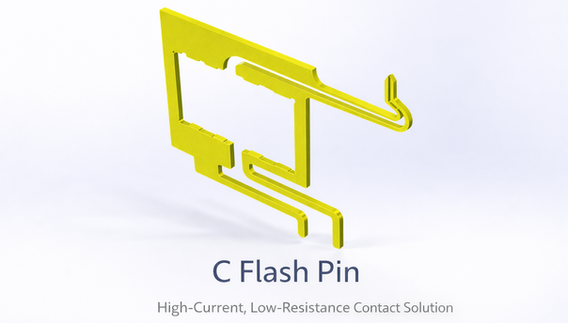

Cantilever Pin Structure

Category          Parameter                    Specification

Package Type   Supported Packages       QFN, QFP, SO

Mechanical       Lead Pitch                       ≥ 0.4 mm

                          Test Travel                       —

                          DUT Force                       34 gf @ 0.3 mm

                          PCB Force                        30 gf @ 0.3 mm

Material           Pin Material                     BeCu, Gold Plated

Reliability         Mechanical Pin Life         1K cycles @ 0.3 mm

Electrical          Contact Resistance          < 50 mΩ

                          Current Capacity              6.85 A @ 100%

                          Bandwidth                       13.7 GHz (Single Contact)

                          Inductance                       3.68 nH (Self), 1.64 nH (Mutual)

Environmental  Operating Temperature   -60°C to 180°C
